CRRC CDJF219 Brushless Excitation Synchronous Generator

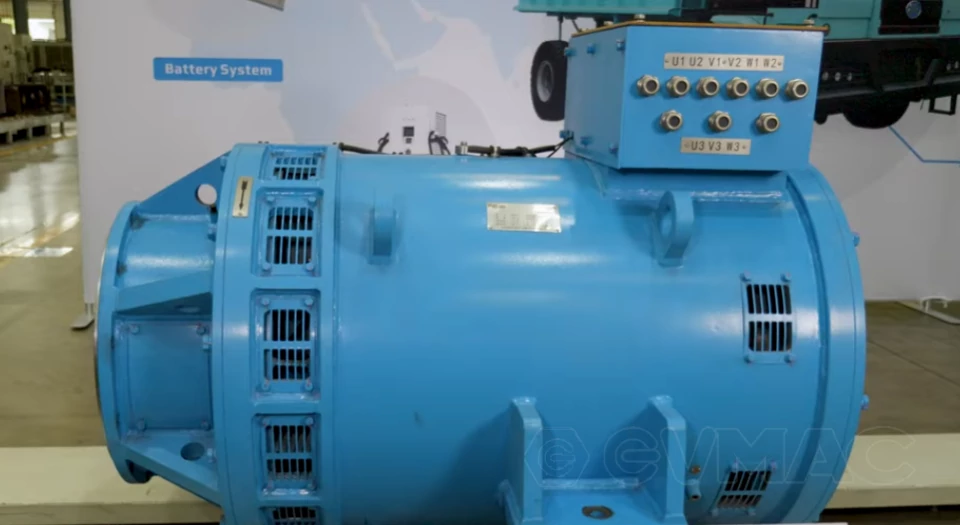

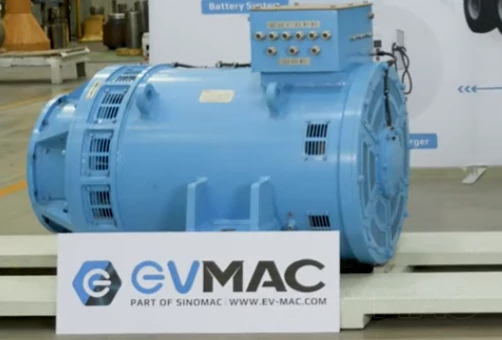

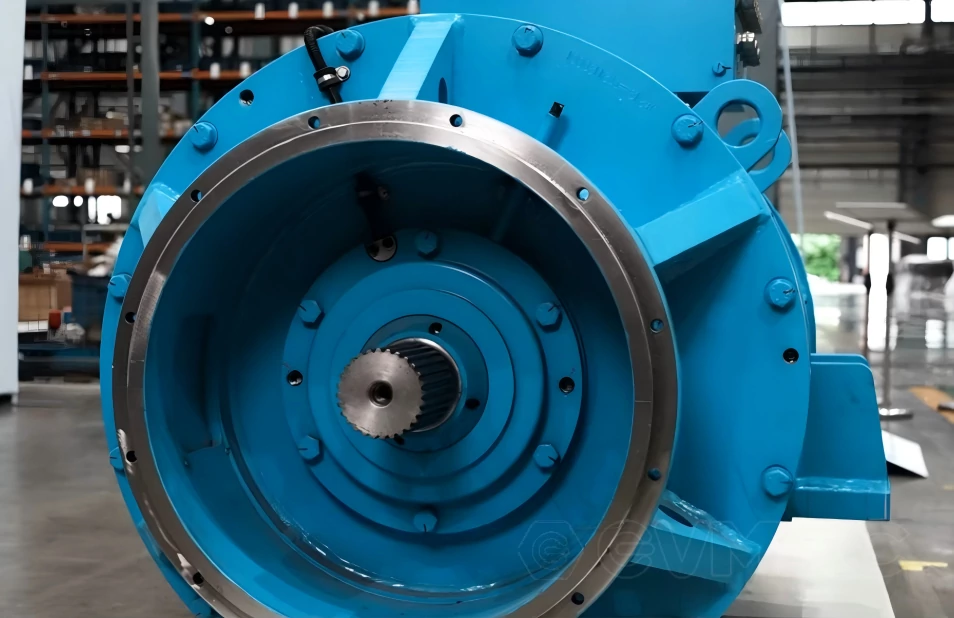

CRRC CDJF219 Traction Motor is a synchronous generator that employs an AC exciter and a rotating rectifier to supply excitation energy to the magnetic field of a coaxial generator. The rated power can reach 620 kW with a 336 amp rated current, and the rated voltage can reach up to 1170 V.CRRC CDJF219 traction motor’s rated speed is 1800 rpm, and with the separately excited mode. These parameters are adapted to the long-term or staged operation requirements of different working conditions under actual operation requirements. The overall weight of CRRC CDJF219 traction motor is about 2100 kg, which reflects the structural strength and stability of the equipment and is suitable for installation and operation in traction scenarios. It is equipped with a built-in cooling fan, and an additional cooling blower is not a necessity for the alternator.CRRC CDJF219 traction motor is capable of 110% overload operation at an altitude of some 1000 meters.We offer comprehensive life-cycle support for the motor, covering equipment supply, on-site installation and commissioning, maintenance training, spare parts provision, and ongoing technical troubleshooting services.
Advantages of CRRC CDJF219 Brushless Excitation Synchronous Generator
With a 620 kW rated power and 1170 V rated voltage, it delivers large-capacity, continuous power supply to meet the high-load demands of heavy-duty equipment (e.g., DMUs, industrial drive systems), ensuring stable operation under peak loads.
The brushless excitation design eliminates wearable brush components, reducing maintenance needs, lowering fault rates, and extending the generator’s service life—ideal for long-term continuous operation scenarios.

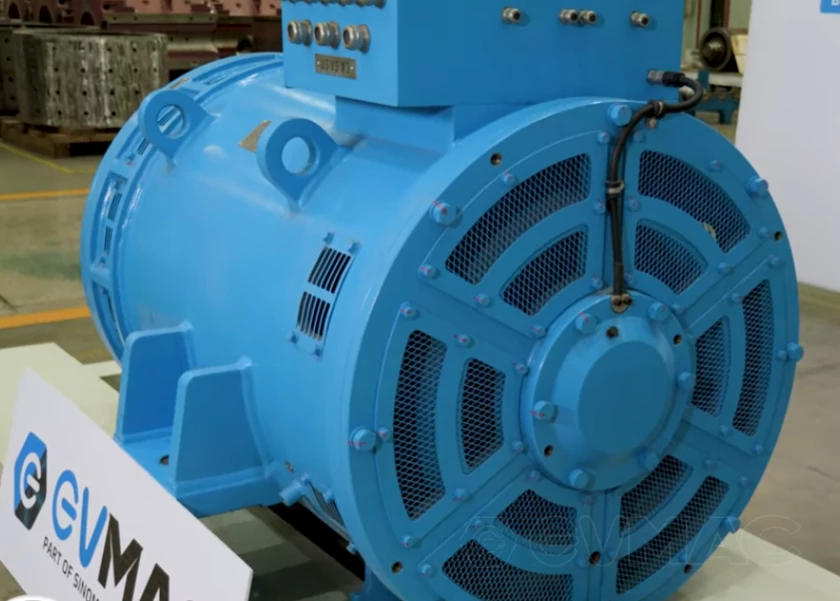

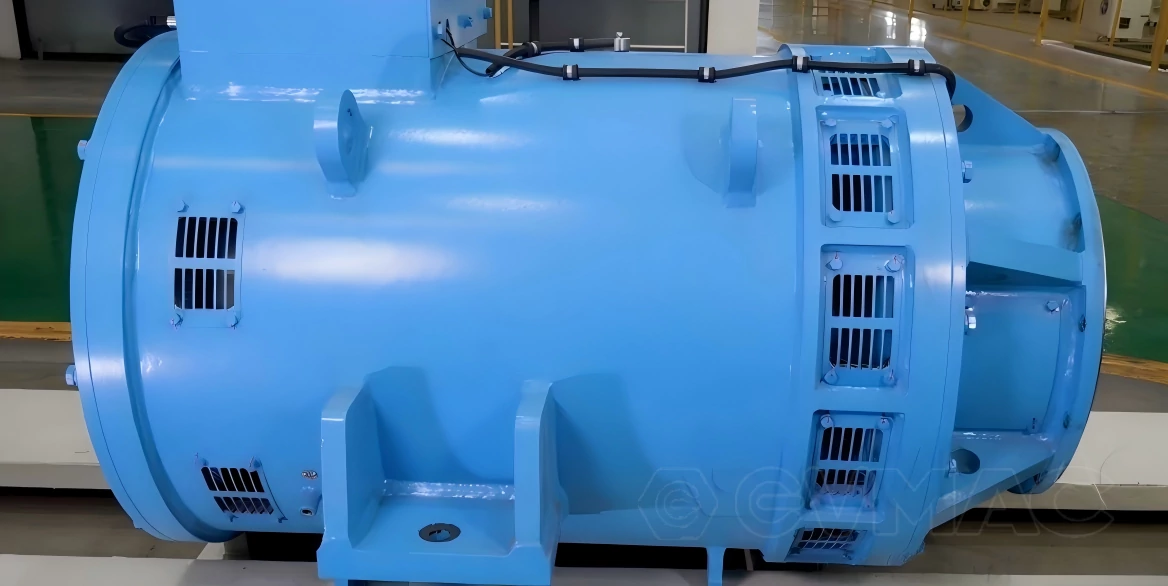

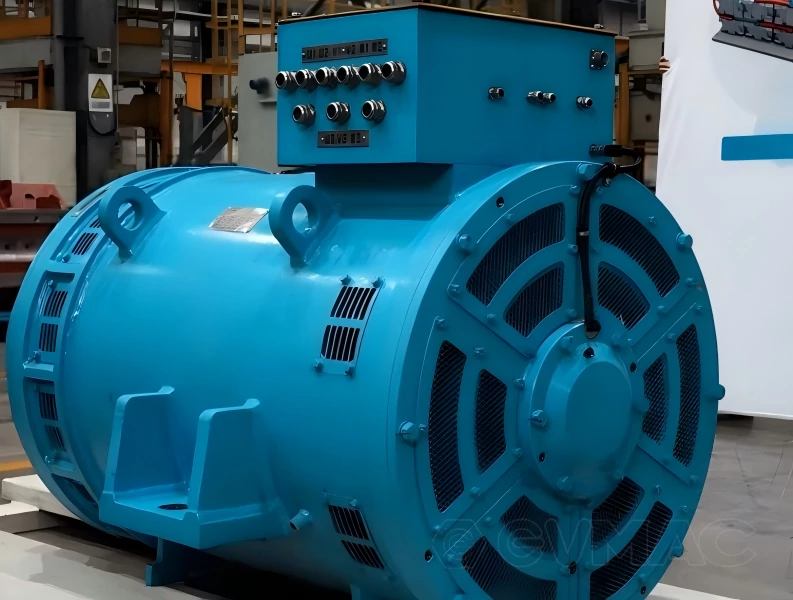

Its robust casing and heat-dissipating grid structure ensure efficient heat dissipation during high-power operation, while the 2100 kg heavy-duty build enhances stability and vibration resistance in harsh industrial environments.
As a synchronous generator, it maintains high power factor and conversion efficiency (matching industrial-grade performance standards), minimizing energy loss and reducing operational costs for equipment operators.
Designed to integrate with mainstream heavy-duty equipment (e.g., large DMUs, industrial power systems), it supports standardized connection interfaces and adapts to diverse power system configurations, enhancing its applicability across multiple scenarios.
Technical Specifications
| Motor Model: | CDJF219 |
| Rated Power: | 620 kW |
| Rated Voltage: | 1170 V |
| Rated Current: | 336 A |
| Rated Speed: | 1800 rpm |
| Weight: | 2100 kg |
General Infomation of CRRC CDJF219 Traction Motor | |||
| Motor Model | CDJF219 | Rated Power | 620 kW |
| Rated Current | 336 A | Rated Voltage | 1170 V |
| Rated Speed | 1800 rpm | Weight | 2100 kg |
| ——END—— | |||
Motor Model | Rated Power | Rated Voltage | Rated Current | Rated Speed | Insulation Grade | Rated Efficiency |
| CDJD113 AC traction motor | 520 kW | 805 V | 478 A | 513 rpm | 200 | 91.50% |
| CDJD114 AC traction motor | 378 kW | 830 V | 340 A | 5998 rpm | 200 | 92.50% |
| CDJD114B AC traction motor | 480 Kw | 660 V | 560 A | 493 rpm | 200 | 91.50% |
| CDJD115 AC traction motor | 330 kW | 690 V | 370 A | 596 rpm | 200 | 91.50% |
| CDJD116 AC traction motor | 125 kW | 550 V | 157 A | 2685 rpm | 200 | 92.50% |
| JD158 AC traction motor | 300 kW | 488 V | 476 A | 5329 rpm | 200 | 91.37% |
| JD159A AC traction motor | 200 kW | 1248 V | 112.2 A | 2172 rpm | 200 | 94% |
| JD160A AC traction motor | 1225 kW | 1375 V | 598 A | 1720 rpm | 200 | 94.50% |
| ——END—— | ||||||
Motor Model | Rated Power | Rated Voltage | Rated Current | Rated Speed | Insulation Grade | Rated Efficiency |
| CDJF201 Main Generator | 1400 kW | 265/780 V | 3045/1035 A | 1800 rpm | H | 95% |
| CDJF208F Main Generator | 1800 kW | 1015/1250 V | 1023/831 A | 1000 rpm | H | 95% |
| CDJF212 Main and Auxiliary Generator | 4000 kW | 1346 V | 1716 A | 1000 rpm | 200 | 96% |
| CDJF213A Main Generator | 2200 kW | 321/780 V | 3955/1630 A | 1800 rpm | H | 96% |
| CDJF219 Brushless Excitation Synchronous Generator | 620 kW | 1170 V | 336 A | 1800 rpm | H | N/A |
| JF204DZ Main Generator | 3700 kW | 508/770 V | 4210/2775 A | 1000 rpm | H | 95% |
| TQFR-3000 Main Generator | 3000 kW | 438/613 V | 3936/2805 A | 1100 rpm | H | 85% |
| ——END—— | ||||||
Supporting locomotive products include:
traction motors and generators for diesel DC locomotives, diesel AC locomotives, and hybrid locomotives, as well as fan motors and starter motors, etc.;
Supporting diesel AC locomotives mainly include:
Qiqihar HXN5 locomotive, Qiqihar HXN5B (4400HP) shunting locomotive, Qiqihar FXN5C (4400HP) freight locomotive, Ziyang HXN6 hybrid locomotive, Ziyang Thailand SDA3, Ziyang Thailand SDA4, Ziyang Turkmenistan CKD9A-1 locomotive, Qiqihar Thailand CDA5B1 locomotive, Qiqihar Guinea 4400HP locomotive, Qiqihar Nigeria DF8B locomotive, Qiqihar Kenya meter-gauge locomotive, etc.
The company has established R&D platforms for electric drive systems, including motors, converters, power modules, IGBTs, and system integration. The independently developed electric drive system for the 350 km/h China Standard EMU marks Yongji Electric Machinery Co., Ltd.’s complete mastery of the core technologies for EMU electric drive systems, achieving a leap from “Made in China” to “Intelligent Manufacturing in China.”
The company’s railway mainline locomotive electric drive products currently cover more than 10 models of locomotives, including the HXD2 and HXD3 electric locomotives and the HXN3 diesel locomotive. The company’s developed EMU traction motors and control systems currently cover more than 10 models of domestic EMUs, including the CRH2, CRH3, and CRH5, holding nearly half of the domestic market share.
Note: All Above Data are Just for Reference, All Data Might Change Without Notices or Updates, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
