CRRC Wire Drawing Machine Motors 15-75kW

CRRC Wire Drawing Machine Motor is a high-performance drive solution tailored for metal wire drawing equipment. With 4 standardized product lines covering a 15-75kW power range, it has been widely adopted by over 1,000 metal wire manufacturing enterprises across China.
Featuring stable performance, low noise, lightweight design, and easy maintenance, this motor series perfectly matches the continuous, high-precision operational demands of wire drawing processes. It includes multiple sub-models to adapt to different production scales and material processing requirements.

If you are in need of motor that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at CRRC.



coming soon

coming soon

General Specifications of CRRC Wire Drawing Machine Motor 15-75kW Series

Torque Power: 15 – 75kW
Torque Range: 0-6500 Nm
Speed Range: 0-2400 rpm
Efficiency: ≥94% – 97.5%
Power Factor: 0.95 – 0.97
Protection: IP54 / IP55 / IP65
Insulation: Class F / Class H
Cooling: IC411 / IC37
Contro: Vector control, VFD drive
Noise: ≤75 – 82 dB
Mounting: B3 / B5
PDTY408X PDTY408X0-450 Nm
PDTY532X PDTY532X0-1080 Nm
PDTY732X PDTY732X0-2400 Nm
PDTY940X PDTY940X0-4000 Nm
PDTY048X PDTY048X0-6500 Nm

Motor Model

Torque Range/Nm

0 1000 2000 3000 4000 5000 6000 7000
CRRC Wire Drawing Machine Motors 15-75kW Catalogue

Motor Model

Torque Range

Speed Range

Motor Model

Torque Range

Speed Range

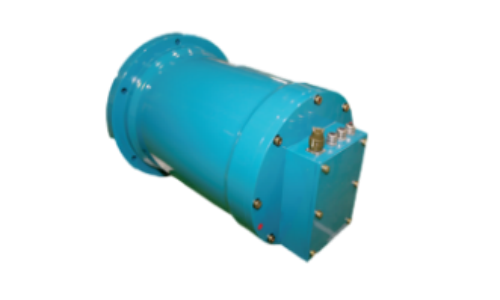

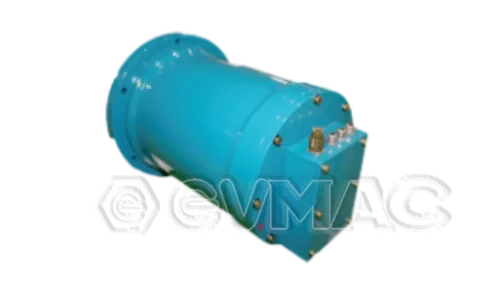

PDTY408X 0-450 Nm 0-2400 rpm PDTY532X 0-1080 Nm 0-785 rpm

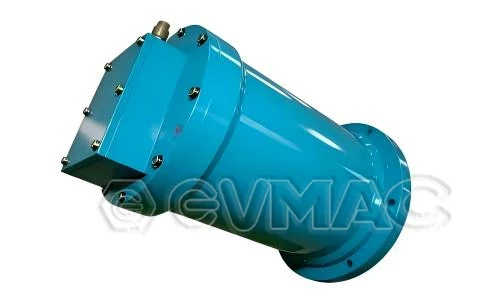

PDTY732X 0-2400 Nm 0-800 rpm PDTY940X 0-4000 Nm 0-600 rpm
PDTY048X 0-6500 Nm 0-500 rpm
——END——

Wire Drawing Machine 15-75kW Series Motors

This is the list of all series of CRRC Wire Drawing Machine 15-75kW Series Motors. Click here to find wire drawing machine motors 15-75kW by type
