CRRC 1200kW Oil Drilling Rig Motor

CRRC 1100kW oil drilling rig motor is a high-power, heavy-duty drive solution with a rated power of 1100 kW, a 690 V rated voltage, and a 500 r/min rated speed, featuring an H-class insulation system and IP55 protection rating.

Equipped with a 1071 A rated current capacity and 21,000 N·m rated torque, this motor is engineered to deliver robust, consistent performance under the high-load, dusty, and high-vibration conditions of oil drilling operations, while its IC06 air-cooling system ensures reliable thermal management in harsh field environments.

As a mature model in the CRRC oilfield motor series, it integrates seamlessly with mainstream drilling rig drive systems, ensuring reliable operation and compatibility with industry-standard oilfield equipment.

We offer comprehensive life-cycle support for the oil drilling rig motor, covering equipment supply, on-site installation and commissioning, maintenance training, spare parts provision, and ongoing technical troubleshooting services.

Advantages of CRRC 1200kW Oil Drilling Rig Motor

This Oil Drilling Rig Motor features an integrated explosion-proof design, meeting safety requirements for flammable and explosive hazardous environments such as oil drilling sites to eliminate potential risks at the source.
It comes equipped with stator winding and bearing temperature sensors for full-condition safety monitoring, enabling real-time operating status tracking, early warnings, and fault diagnosis to ensure safe and controllable performance.
The fan inlet is fitted with rainproof and sand-filtering devices for excellent adaptability to harsh environments, effectively resisting dust, sand, and rain to maintain stable operation in oilfields, deserts, and other extreme conditions.
With a high power density design, it delivers 1200 kW of power in a compact, lightweight form, optimizing installation space for deployment in space-constrained scenarios like mobile drilling platforms.
Its efficient heat dissipation and reliable operation rely on forced air cooling, which effectively controls temperature rise under high loads to ensure long-term stability and reduce maintenance frequency.

Technical Specifications

Motor Model:	YP560-1-6-2
Rated Power:	1200 kW
Rated Voltage:	690 V
Rated Current:	1220 A
Rated Speed:	600 r/min
Maximum Speed:	2100 r/min
Rated Torque:	19895 N·m
Insulation Class:	H
Protection Class:	IP55
Cooling Method:	IC06 Air Cooling
Mass:	5800 kg

coming soon

Product Model	Motor Model	Rated Power	Rated Voltage	Rated Current	Rated Speed
1100kW Oil Drilling Rig Motor	YP560-1-6	1100 kW	690 V	1071 A	500 r/min
1200kW Oil Drilling Rig Motor	YP560-1-6-2	1200 kW	690 V	1220 A	600 r/min
——END——

General Infomation of CRRC 1200kW Oil Drilling Rig Motor
Motor Model	YP560-1-6-2	Purge Time	5 min
Minimum Air Flow	120 m³/min	Minimum Positive Pressure	150 Pa
Shutdown Pressure	60 Pa	Pressurized Volume	300 L
Explosion-proof Certificate	CNEx07.0986X	Explosion-Proof Standard	Ex db ec ib p2c IIB T4 Gc
——END——

Electric Drive Drilling Product Ledger – 2025-03-28

Model	Model	Code	Parameters	Parameters	Quantity
1100kW Rail Wheel Motor	YP560-1-6 (basically identical in appearance to the headquarters motor YSP5601-6; main differences: voltage class, bearing temperature sensor added to rear end cover, insulating sleeve added to rear end cover, coil structure modified, junction box structure optimized)	3F08400000G00	Rated Power	1100 kW	1 unit
			Rated Voltage	690 V
			Rated Current	1071 A
			Rated Speed	500 r/min
			Rated Torque	21000 N·m
			Weight	5.7 t
1400kW Rail Wheel Motor	YP560-1-6-1 (basically identical in appearance to YP560-1-6; main differences: power class, coil structure, junction box structure optimized)	3F14400000G00	Rated Power	1400 kW	2 units
			Rated Voltage	690 V
			Rated Current	1400 A
			Rated Speed	600 r/min
			Rated Torque	22283 N·m
			Weight	5.7 t
400kW Rotary Table Motor	YFQ71M43 (based on the headquarters motor YSP4233-6; main differences: power class, fan position, junction box position, coil structure modified, iron core shortened)	1B39400000G00	Rated Power	400 kW	1 unit
			Rated Voltage	600 V
			Rated Current	517 A
			Rated Speed	660 r/min
			Rated Torque	5780 N·m
			Weight	3.0 t
1000kW Winch Wheel Motor	YFQ71L43 (based on the headquarters motor YSP4234-6; main differences: power class, junction box position, coil structure modified, iron core lengthened)	1B39500000G00	Rated Power	1000 kW	1 unit
			Rated Voltage	600 V
			Rated Current	1170 A
			Rated Speed	803 r/min
			Rated Torque	11893 N·m
			Weight	3.75 t
1250kW Rail Wheel Motor	YP560-1-6-2/YP560-1-6-3 (basically identical in main structure to YP560-1-6; main differences: power class, coil insulation structure, junction box top-mounted, fan side-mounted; YP560-1-6-2 is right-side fan, YP560-1-6-3 is left-side fan)	3F16800000G00 / 3F16900000G00	Rated Power	1250 kW	2 units
			Rated Voltage	690 V
			Rated Current	1220 A
			Rated Speed	600 r/min
			Rated Torque	3095 N·m
			Weight	5.8 t
600kW Workover Rig Motor	YFQ71M73 (based on YFQ71M43, iron core lengthened by 60mm, power class increased, fan installed separately, air duct used for cooling air transmission, base mounting dimensions changed, vibration transmitter added, coil, rotor, frame, front/rear end cover processing and junction box modified)	1B42400000G00	Rated Power	600 kW	2 units
			Rated Voltage	600 V
			Rated Current	720 A
			Rated Speed	660 r/min
			Rated Torque	8682 N·m
			Weight	3.2 t
1000kW Workover Rig Motor	(YFQ71L43-1 (basically identical in main structure to YFQ71L43, base mounting dimensions changed, vibration transmitter added, frame, front/rear end cover processing and junction box modified)	1B42500000G00	Rated Power	1000 kW	1 unit
			Rated Voltage	600 V
			Rated Current	1172 A
			Rated Speed	803 r/min
			Rated Torque	11893 N·m
			Weight	3.75 t
——END——

Electric Drilling Service

1.1 Equipment Leasing Model

Service Content: Electricity-to-oil equipment, service personnel

Settlement Model: Electricity consumption × service unit price, e.g., 0.2 yuan/kWh

Application Case:
Client: Chongqing Yuechuang
Settlement Unit Price: 0.14 yuan/kWh
Well Location: Da’an 1H27
Electricity Consumption: 5,791,800 kWh
Settlement Amount: 785,000 yuan

1.2 Equipment Leasing Model (Including Tail-End Engineering)

Service Content: Electricity-to-oil equipment, service personnel, and tail-end engineering construction between the external power lines and the equipment inside the well site

Settlement Model: Electricity consumption × service unit price, e.g., 0.21 yuan/kWh

Application Case:
Client: Chongqing Yuechuang
Settlement Unit Price: 0.25 yuan/kWh
Well Location: Zi 205H2
Electricity Consumption: 10,030,000 kWh
Settlement Amount: 2,494,500 yuan

1.3 Power Supply Engineering Services

Service Content: Power grid installation, power-to-oil conversion equipment, service personnel, construction of the connection between external power lines and equipment within the well site, electricity costs

Settlement Method: Equipment electricity consumption × service unit price, e.g., 1.1 RMB/kWh

Application Case:
Client: Xi’an Yitong
Settlement Unit Price: 1.1 RMB/kWh
Well Location: Hua 69
Electricity Consumption: 1 million kWh (estimated)
Settlement Amount: 1.1 million RMB

1.4 Gas-to-Oil Engineering Services

Service Content: Power-to-oil conversion equipment, service personnel, gas-fired power generation equipment, natural gas

Settlement Method: Equipment electricity consumption × service unit price, e.g., 1.5 RMB/kWh

Application Case:
Client: Sichuan Qing Drilling Xinjiang Branch
Settlement Unit Price: 1.5 RMB/kWh
Well Location: Kutan 1
Electricity Consumption: 6 million kWh (estimated)
Settlement Amount: 9 million RMB

Electric Drilling Supporting Products

1.1 Electricity Substitution for Diesel Engines in Mechanical Drilling Rigs

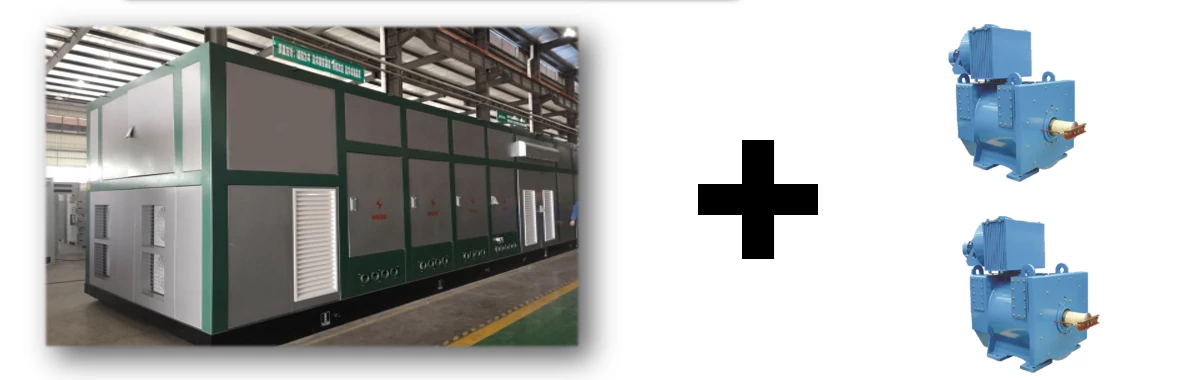

3150kVA

3150 kVA High-Voltage Variable Frequency Drive Room + AC Asynchronous Motors

The electricity substitution equipment for mechanical drilling rigs consists of a 3150 kVA high-voltage variable frequency drive room (power distribution + frequency conversion), two AC asynchronous motors, and matching cables. After connection to the grid power, the motors replace the diesel engine of the mechanical drilling rig, providing power for drilling and domestic use. Currently, the company owns 41 sets of this series of equipment, all purchased from suppliers. The company has product design capabilities and motor manufacturing capabilities.

1.2 Electric Drilling Rig Supporting Electric-to-Oil Generator Equipment

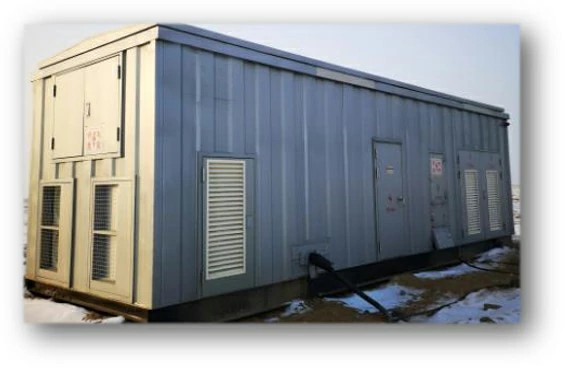

4000kVA

4000 kVA High-Voltage Power Distribution Room

General Infomation of 4000 kVA High-Voltage Power Distribution Room
Rated Capacity	3000 kVA (600 V) + 1000 kVA (400 V)	Rated Current	2886 A/1443 A
Input Voltage	10000 V ± 3 × 2.5%	Cooling Method	Forced Air Cooling
Dimensions	10000 mm × 3000 mm × 3050 mm	Weight	20000 kg
——END——

The electric drilling rig supporting electric-to-oil generator equipment consists of a 4000 kVA high-voltage power distribution room and supporting cables. After the product is connected to the grid, the high-voltage power distribution room replaces the diesel generator of the electric drilling rig, providing power for drilling and domestic use. Currently, the company has 13 sets of this series of equipment. All were purchased from suppliers, and the company has product design capabilities.

1.3 Oil Drilling Motor

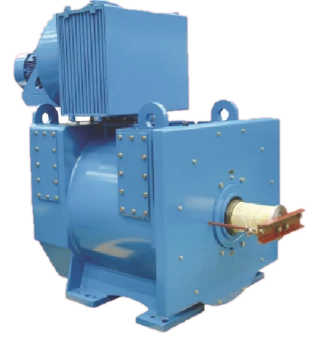

1100kW

1100 kW Oil Drilling Rig Motor

General Infomation of 1100 kW Oil Drilling Rig Motor
Rated Power	1100 kW	Input Voltage	600 V
Rated Speed	500 r/min	Constant Power Range	500~1650 r/min
Cooling Method	Forced Air Cooling	Weight	5400 kg
——END——

Overall Explosion-Proof Motor Equipped with temperature sensors for the motor stator windings and bearings to ensure equipment safety and controllability. The fan inlet is equipped with rainproof and sand-filtering devices to meet harsh working conditions such as sandstorms and rain. High power density design, small size and light weight.
