CRRC Fluid Machinery Motors
CRRC fluid machinery is a comprehensive portfolio of high-speed, high-efficiency drive solutions designed for industrial fluid handling applications. The series includes compressor motors, MVR evaporation systems, vacuum turbines, and power generation equipment, with a power range spanning 16 kW to 1800 kW. Since 2012, CRRC has achieved multiple technological breakthroughs, including China’s first high-speed permanent magnet motor for air-conditioning centrifugal chillers and the first 1 MW MVR evaporation motor, establishing itself as a domestic leader in this field. With over 5,000 units deployed across national landmark projects and industrial sites, these systems deliver significant energy savings and reliable performance.
If you are in need of Motor that not available on our website for the moment, please contact EMAC sales team for technical details and related documents, our well trained sales and engineering team will help you with all products and techical documents available here at CRRC.
General Specifications of Fluid Machinery Series
| Power: | 100 – 15000 kW |
| Voltage: | 380 – 10000V |
| Speed: | 3000 – 30000 r/min |
| Insulation Class: | H |
| Protection Class: | IP56 |
| TYP1605-2180 kW | ||||||||
| TPSRZ180-2-R134a180 kW | ||||||||
| TPSRZ240-2-R134a240 kW | ||||||||
| TPSRZ280-2-R134a280 kW | ||||||||
| TPSRZ320-2-R134a320 kW | ||||||||
| TPSRZ400-2-R134a400 kW | ||||||||
| TPSRZ450-2-R134a450 kW | ||||||||
| TPSRZ480-2-R134a480 kW | ||||||||
| TPSRZ560-2-R134a560 kW | ||||||||
| TPSRZ850-2-R134a850 kW | ||||||||
| TPSRZ1100-2-R134a1100 kW | ||||||||
| TPSRZ1300A-2-R134a1300 kW | ||||||||
| TPSRZ1800A-2-R134a1800 kW | ||||||||
| Maglev HSPMG100 – 15000 kW | ||||||||
| MVR Permanent Magnet VFM132 – 1000 kW | ||||||||
| Vacuum Turbine Equipment315 – 630 kW | ||||||||
Model Power/kW | 0 | 2000 | 10000 | 11000 | 12000 | 13000 | 14000 | 15000 |
Model | Power | Voltage | Model | Power | Voltage | ||
| TYP1605-2 | 180 kW | 420 V | TPSRZ180-2-R134a | 180 kW | 420 V | ||
| TPSRZ240-2-R134a | 240 kW | 380 V | TPSRZ280-2-R134a | 280 kW | 450 V | ||
| TPSRZ320-2-R134a | 320 kW | 380 V | TPSRZ400-2-R134a | 400 kW | 380 V | ||
| TPSRZ450-2-R134a | 450 kW | 420 V | TPSRZ480-2-R134a | 480 kW | 420 V | ||
| TPSRZ560-2-R134a | 560 kW | 420 V | TPSRZ850-2-R134a | 850 kW | 720 V | ||
| TPSRZ1100-2-R134a | 1100 kW | 720 V | TPSRZ1300A-2-R134a | 1300 kW | 720 V | ||
| TPSRZ1800A-2-R134a | 1800 kW | 720 V | Maglev HSPMG | 100 – 15000 kW | 400 – 10000 V | ||
| MVR Permanent Magnet VFM | 132 – 1000 kW | 380 – 10000 V | Vacuum Turbine Equipment | 315 – 630 kW | 380 – 3000 V | ||
| ——END—— | |||||||
Fluid Machinery Series Motors
This is the list of all series of CRRC Fluid Machinery Series Motors.
Click here to find Fluid Machinery Motors by type
CRRC TYP1605-2 Fluid Machinery
Rated output power: 180 kW
Rated voltage: 420 V
Rated rotating speed: 16128 rpm
CRRC TPSRZ180-2-R134a Fluid Machinery
Rated output power: 180 kW
Rated voltage: 420 V
Rated rotating speed: 16128 rpm
CRRC TPSRZ240-2-R134a Fluid Machinery
Rated output power: 240 kW
Rated voltage: 380 V
Rated rotating speed: 15000 rpm
CRRC TPSRZ280-2-R134a Fluid Machinery
Rated output power: 280 kW
Rated voltage: 450 V
Rated rotating speed: 13000 rpm
CRRC TPSRZ320-2-R134a Fluid Machinery
Rated output power: 320 kW
Rated voltage: 380 V
Rated rotating speed: 12000 rpm
CRRC TPSRZ400-2-R134a Fluid Machinery
Rated output power: 400 kW
Rated voltage: 380 V
Rated rotating speed: 12000 rpm
CRRC TPSRZ450-2-R134a Fluid Machinery
Rated output power: 450 kW
Rated voltage: 420 V
Rated rotating speed: 9800 rpm
CRRC TPSRZ480-2-R134a Fluid Machinery
Rated output power: 480 kW
Rated voltage: 420 V
Rated rotating speed: 12000 rpm
CRRC TPSRZ560-2-R134a Fluid Machinery
Rated output power: 560 kW
Rated voltage: 420 V
Rated rotating speed: 9500 rpm
CRRC TPSRZ850-2-R134a Fluid Machinery
Rated output power: 850 kW
Rated voltage: 720 V
Rated rotating speed: 8000 rpm
CRRC TPSRZ1100-2-R134a Fluid Machinery
Rated output power: 1100 kW
Rated voltage: 720 V
Rated rotating speed: 8000 rpm
CRRC TPSRZ1300A-2-R134a Fluid Machinery
Rated output power: 1300 kW
Rated voltage: 720 V
Rated rotating speed: 7000 rpm
CRRC TPSRZ1800A-2-R134a Fluid Machinery
Rated output power: 1800 kW
Rated voltage: 720 V
Rated rotating speed: 6500 rpm
CRRC Maglev High-Speed PM Generator
Rated output power: 100-15000 kW
Rated voltage: 400-10000V
Rated rotating speed: 3000-30000 rpm
CRRC MVR Permanent Magnet Motor
Rated output power: 132-1000 kW
Rated voltage: 380-10000V
Rated rotating speed: 15000-18000 rpm

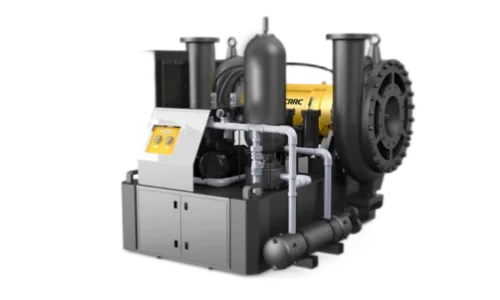

CRRC Vacuum Turbine Equipment
Rated output power: 315-630 kW
Rated voltage: 380-3000 V
Rated rotating speed: 12000-15000 rpm
