CRRC Electric-Driven Fracturing Motors

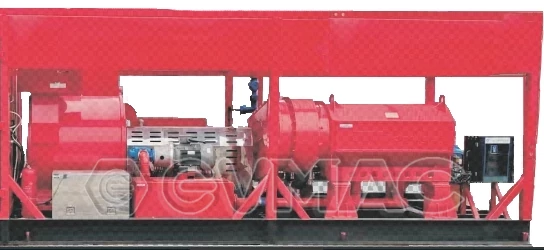

CRRC electric-driven fracturing motors are heavy-duty, high-power drive solutions tailored for oilfield fracturing operations, featuring a modular design with rated power ranging from 3155 kW to 4420 kW and rated voltage of 3.3 kV, 6 kV, and 6.6 kV. Equipped with H-class insulation system and forced air cooling device, the motors come with high-precision temperature sensors and explosion-proof structure for harsh field environments.As a core component of electric-driven fracturing skid systems, CRRC provides a complete powertrain integration that combines its self-developed motors, BP series traction inverters, phase-shifting transformers, and intelligent control systems. While the electrification of oilfield equipment is an inevitable trend, CRRC also continuously optimizes product performance to adapt to different working conditions. We provide full life cycle services for all customers, from customized motor design to integrated powertrain supply, from on-site installation to commissioning, from after-sales service training to spare parts provision, from fault diagnosis to overhaul technical support.CRRC electric-driven fracturing motors can meet mainstream industrial safety and emission requirements, with different models designed for specific application scenarios. The suffix letters A/B/C/D/E represent optimized versions for different customers and working conditions, which means the basic motor structure is the same, the major differences are the rated parameter calibration, inverter matching, and structural details. CRRC will keep updating the product introduction page of different version motors, welcome to subscribe our website to get the latest update information.If you are in need of a motor model that is not available on our website for the moment, please contact CRRC sales team for technical details and related documents. Our well-trained sales and engineering team will help you with all products and technical documents available here at CRRC electric-driven fracturing series.
General Specifications of Electric-Driven Fracturing Series
| Rated Power: | 2000 – 4420 kW |
| Rated Voltage: | 3300 – 6600 V |
| Rated Current: | 320 – 450 A |
| Rated Speed: | 500 – 865 rpm |
| Insulation Grade: | H |
| Rated Efficiency: | 96% – 97% |
| Output Voltage: | 0 – 6.6 kV (2 circuits) |
| Max Continuous Output Current: | 2 × 350 – 380 A |
| Phase-Shifting Transformer Capacity: | 3650 – 4000 kVA |
| Power Module Capacity: | 4000 kVA |
| 3000 Series2000 kW | ||||||||
| 5000 Series 3155 kW | ||||||||
| 7000 Series4420 kW | ||||||||
Motor Model Rated Power/kW | 0 | 500 | 1000 | 2000 | 2800 | 3600 | 4400 | 5200 |
| 5000 Series3650 kVA | ||||||||
| 5000 Series Reinforced4000 kVA | ||||||||
| 7000 Series3650 kVA | ||||||||
Motor Model PS Transformer Capacity/kVA | 0 | 3600 | 3650 | 3700 | 3800 | 3900 | 4000 | 4100 |
| 10 kV Distribution Room10kV | ||||||||
| 35kV Distribution Room35 kV | ||||||||
Motor Model Voltage/kV | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 |
Model | Rated Power | Rated voltage | Model | Rated Power | Rated voltage | ||
| 3000 series skid motor | 2000 kW | 3300 V | 5000 series skid motor | 3155 kW | 6600 V | ||
| 7000 series skid motor | 4420 kW | 6600 V | |||||
Model | PS Transformer Capacity | Power Module Capacity | Model | PS Transformer Capacity | Power Module Capacity | ||
| 5000 Series | 3650 kVA | 4000 kVA | 5000 Series Reinforced | 4000 kVA | 4000 kVA | ||
| 7000 Series | 3650 kVA | 4000 kVA | |||||
Model | Voltage | Model | Voltage | ||||
| 10kV Distribution Room | 10 kV | 35kV Distribution Room | 35 kV | ||||
| ——END—— | |||||||
Electric-Driven Fracturing Series Motors
Click here to find electric-driven fracturing motors by type

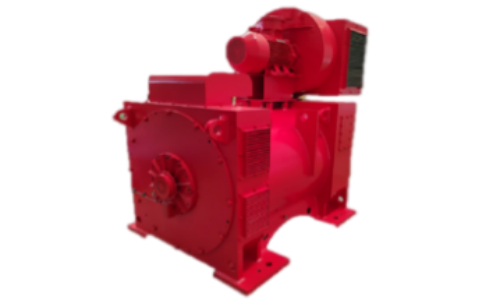

CRRC 3000 Series Skid Motor
Rated output power: 2000 kW
Rated voltage: 3300 V
Rated current: 402 A
Rated rotating speed: 500 rpm

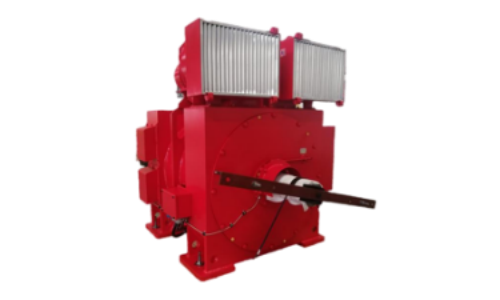

CRRC 5000 Series Skid Motor
Rated output power: 3155 kW
Rated voltage: 6600 V
Rated current: 320 A
Rated rotating speed: 865 rpm

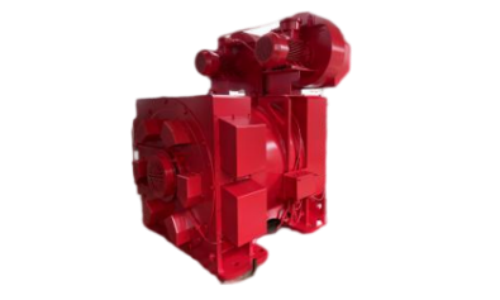

CRRC 7000 Series Skid Motor
Rated output power: 4420 kW
Rated voltage: 6600 V
Rated current: 450 A
Rated rotating speed: 776 rpm

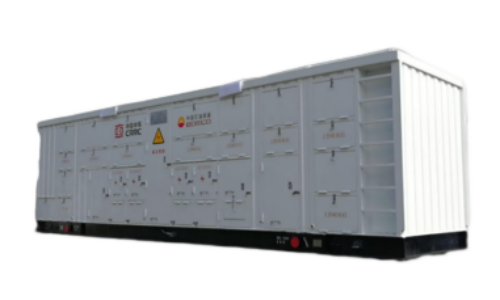

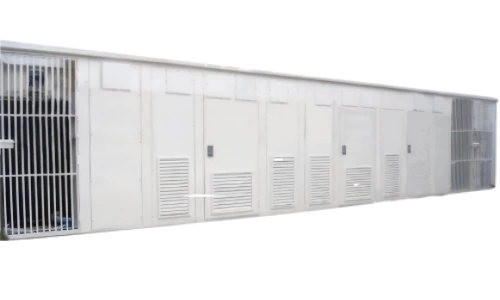

CRRC 5000 Series VFD Room
Output Voltage: 2 circuits, 0~6.6 kV
Max Continuous Output Current: 2 × 350 A
Phase-Shifting Transformer Capacity: 3650 kVA
Rectification Pulsation: 36-pulse
CRRC 5000 Series Reinforced VFD Room
Output Voltage: 2 circuits, 0~6 kV / 2 circuits, 0~6.6 kV
Max Continuous Output Current: 2 × 372 A / 2 × 380 A
Phase-Shifting Transformer Capacity: 4000 kVA
Rectification Pulsation: 30-pulse / 36-pulse

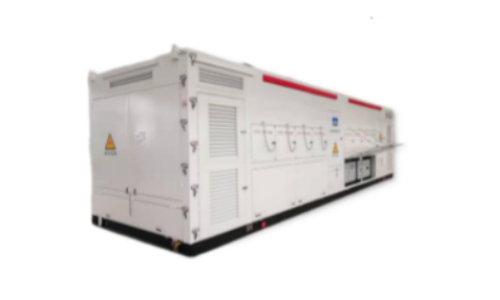

CRRC 7000 Series VFD Room
Output Voltage: 2 circuits, 0~6.6 kV
Max Continuous Output Current: 2 × 350 A
Phase-Shifting Transformer Capacity: 3650 kVA
Rectification Pulsation: 36-pulse

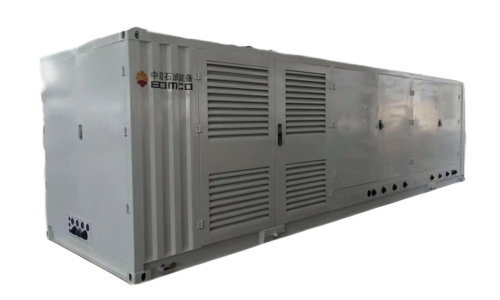

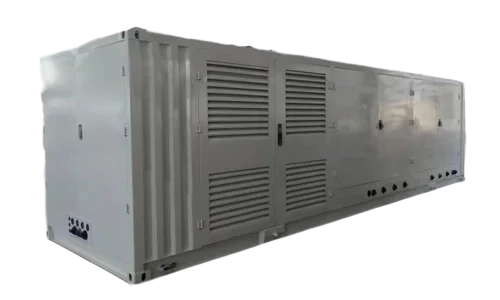

CRRC 10kV Distribution Room
Voltage: 10kV
Function: Provides power supply for electrically driven fracturing skids

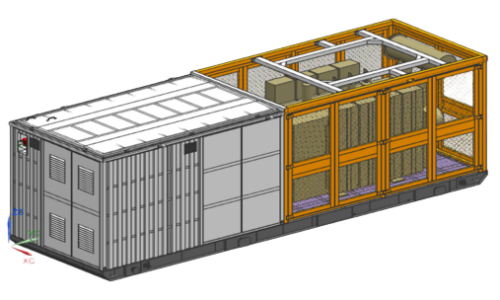

CRRC 35kV Distribution Room
Voltage: 35kV
Function: Provides power supply for electrically driven fracturing skids
