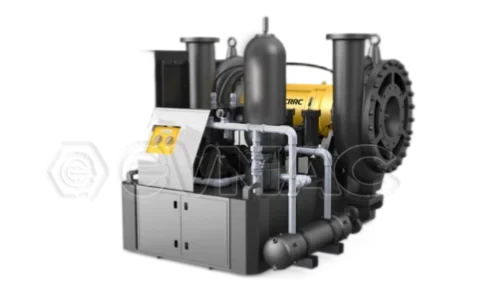

CRRC Vacuum Turbine Equipment

CRRC vacuum turbine equipment is a high-performance, high-speed permanent magnet direct-drive solution tailored for paper mill vacuum systems, delivering a rated output power ranging from 315 kW to 630 kW, a rated voltage of 380 V to 3,000 V, and a rated speed of 12,000 to 15,000 rpm, paired with H-class insulation and IP56 protection.
Equipped with high-efficiency permanent magnet technology and a ternary flow impeller design, this system is engineered to deliver stable, reliable performance under the dusty, high-humidity conditions of paper mill operations.
As a mature model in the CRRC vacuum turbine series, it integrates seamlessly with mainstream paper mill vacuum systems, ensuring stable operation and compatibility with industry-standard process equipment.
We offer comprehensive life-cycle support for the Vacuum Turbine Equipment, including equipment supply, on-site installation and commissioning, maintenance training, spare parts provision, and ongoing technical troubleshooting services.

Advantages of CRRC Vacuum Turbine Equipment

Adhering to advanced high-speed permanent magnet motor and aerodynamic design technology, the Vacuum Turbine model achieves exceptional energy efficiency, which ensures optimal energy utilization and reduces operational costs for paper mill operators.
Equipped with H-class insulation and IP56 protection, it delivers reliable performance in dusty, high-humidity environments, while the robust thermal management ensures stable load-bearing capacity, significantly reducing the risk of equipment overheating or failure.
Designed with a rated voltage of 380 V to 3,000 V, which complies with mainstream industrial power specifications, it is highly compatible with the power transmission and distribution equipment of most paper mills, lowering supporting configuration costs.
The rated power reaches 315 kW to 630 kW, matching the 12,000 to 15,000 rpm rated speed to meet the high-capacity vacuum demand of paper production processes, and its performance is stable and reliable in long-term operation.
As a mature vacuum turbine model, it is compatible with well-established paper mill vacuum systems, with high part versatility and low operation and maintenance costs, making later maintenance more convenient.

Technical Specifications

Rated Power:	315 – 630 kW
Rated Voltage:	380 – 3000 V
Rated Speed:	12000 – 15000 rpm
Insulation Class:	H
Protection Class:	IP56
Noise:	≤90 dB
Drive End:	Single Output / Dual Output

coming soon

Model	Power	Voltage	Speed
TYP1605-2	180 kW	420 V	16128 rpm
TPSRZ180-2-R134a	180 kW	420 V	16128 rpm
TPSRZ240-2-R134a	240 kW	380 V	15000 rpm
TPSRZ280-2-R134a	280 kW	450 V	13000 rpm
TPSRZ320-2-R134a	320 kW	380 V	12000 rpm
TPSRZ400-2-R134a	400 kW	380 V	12000 rpm
TPSRZ450-2-R134a	450 kW	420 V	9800 rpm
TPSRZ480-2-R134a	480 kW	420 V	12000 rpm
TPSRZ560-2-R134a	560 kW	420 V	9500 rpm
TPSRZ850-2-R134a	850 kW	720 V	8000 rpm
TPSRZ1100-2-R134a	1100 kW	720 V	8000 rpm
TPSRZ1300A-2-R134a	1300 kW	720 V	7000 rpm
TPSRZ1800A-2-R134a	1800 kW	720 V	6500 rpm
Maglev HSPMG	100 – 15000 kW	400 – 10000 V	3000 – 30000 rpm
MVR Permanent Magnet VFM	132 – 1000 kW	380 – 10000 V	15000 – 18000 rpm
Vacuum Turbine Equipment	315 – 630 kW	380 – 3000 V	12000 – 15000 rpm
——END——

Rated Power	Rated Voltage	Rated Speed	Insulation Class	Protection Class	Noise	Drive End
315kW	380 V	12500 rpm	H	IP56	≤90 dB	Single Output
315kW	380 V	12000 rpm	H	IP56	≤90 dB	Dual Output
450kW	380 V	15000 rpm	H	IP56	≤90 dB	Dual Output
600kW	690 V	15000 rpm	H	IP56	≤90 dB	Dual Output
630kW	3000 V	15000 rpm	H	IP56	≤90 dB	Dual Output
——END——
