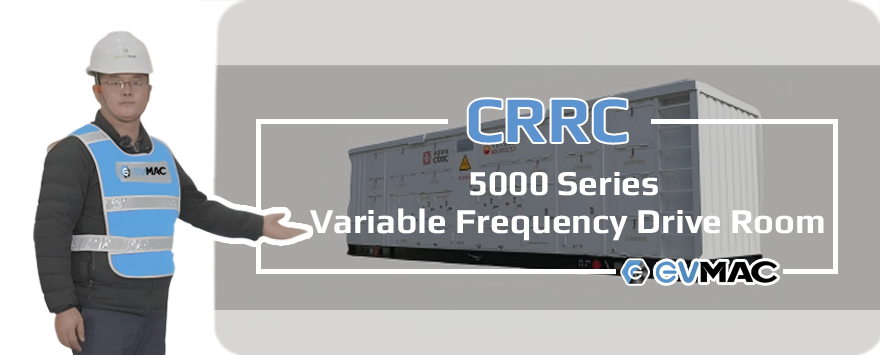

CRRC 5000 Series Variable Frequency Drive Room

CRRC 5000 series variable frequency drive room is a high-power, integrated power conversion solution tailored for 5000HP electric fracturing skid systems, delivering a phase-shifting transformer capacity of 3650 kVA, a 10 kV input voltage, and a 0~6.6 kV adjustable output voltage, featuring a 36-pulse rectification design and 4000 kVA power module capacity.
Equipped with a max continuous output current of 2 × 350 A, this drive room is engineered to deliver robust, consistent power conversion under the high-load, continuous operating conditions of oilfield fracturing operations, while its skid-mounted, fully enclosed design ensures reliable operation in harsh, dusty field environments.
As a mature model in the CRRC oilfield drive series, it integrates seamlessly with mainstream 5000HP electric fracturing skid systems (including those from baoshi special vehicles) and CRRC’s own CDJD904 main motors, ensuring reliable operation and compatibility with industry-standard oilfield equipment.
We offer comprehensive life-cycle support for the variable frequency drive room, covering equipment supply, on-site installation and commissioning, maintenance training, spare parts provision, and ongoing technical troubleshooting services.

Advantages of CRRC 5000 Series Variable Frequency Drive Room

This 5000 series variable frequency drive room delivers high power capacity with a 3650 kVA phase-shifting transformer capacity and 4000 kVA power module capacity, providing the stable, continuous power required for 5000HP fracturing operations.
It ensures high-precision power regulation via its 36-pulse rectification design and 0~6.6 kV adjustable output voltage, minimizing harmonic distortion and enabling precise speed control for the main motor to optimize energy efficiency.
The drive room features rugged field adaptability through its skid-mounted, fully enclosed cabinet design, which provides excellent protection against dust, sand, and moisture for reliable performance in harsh oilfield conditions.
It enables seamless system integration, as it is designed to pair perfectly with CRRC’s CDJD904 main motors and Baoshi Special Vehicles’ 5000HP fracturing skids, offering a fully integrated “drive room + motor” solution for simplified deployment.
Built on CRRC’s mature drive system technology, it ensures low lifecycle costs with high component commonality and low maintenance requirements, reducing long-term operational expenses and downtime.

Technical Specifications

Model:	BP 10/6.6-2-7300
Code:	BP04X010000
Input Power Supply:	2 circuits, 3-phase 50 Hz ±5%, 10 kV ±10%
Output Voltage:	2 circuits, 0~6.6 kV
Max Continuous Output Current:	2 × 350 A
Phase-Shifting Transformer Capacity:	3650 kVA
Power Module Capacity:	4000 kVA
Rectification Pulsation:	36-pulse

Product Model	Motor Model	Rated Power	Rated Voltage	Rated Current	Rated Speed
3000 series skid motor	CDJD902	2000 kW	3300 V	402 A	500 r/min
5000 series skid motor	CDJD904	3155 kW	6600 V	320 A	865 r/min
7000 series skid motor	CDJD903	4420 kW	6600 V	450 A	776 r/min
——END——

General Infomation of CRRC 5000 Series Variable Frequency Drive Room
Model	BP 10/6.6-2-7300	Code	BP04X010000
Input Power Supply	2 circuits, 3-phase 50 Hz ±5%, 10 kV ±10%	Output Voltage	2 circuits, 0~6.6 kV
Max Continuous Output Current	2 × 350 A	Phase-Shifting Transformer Capacity	3650 kVA
Power Module Capacity	4000 kVA	Rectification Pulsation	36-pulse
——END——

Model	Rated Power	Rated Voltage	Rated Speed	Rated Torque	Weight	Notes
CDJD904	3155	6.6	865	34833	8.5
CDJD904A	3155	6	865	34833	8.5	vs. CDJD904: Voltage class, Winding structure
CDJD904B	3155	6	865	34833	8.5	vs. CDJD904A: Air flow direction, Coating/dipping method
CDJD904C	3730	6.6	810	43992	9.5	vs. CDJD904B: Interface unchanged, Core lengthened.
CDJD904D	3730	6.6	865	41181	8.5	vs. CDJD904B: Same outline; Coil from CDJD904.
CDJD904E	3730	3.3	865	41181	9.5	vs. CDJD904C: Similar outline; NDE base plate flush (no protrusion); Side air outlets forward.
——END——
